Zig is now also a Windows resource compiler

2023-10-20 - Programming - Zig

As of a few weeks ago, a cross-platform Windows resource compiler called resinator that I've been working on has been merged into the Zig compiler. This means that the latest master version of Zig can now compile (and cross-compile) Windows resource-definition script (.rc) files for you and link the resulting .res into your program. In addition, the PE/COFF resource table is also used for embedded .manifest files, so Zig now has support for those as well.

If you have no idea what a .rc or .manifest file is, don't worry! The next section should get you up to speed.

Use case: an existing C program🔗

To give you an idea of what's possible with this new capability, let's take an existing Windows GUI program written in C and compile it using Zig. I've chosen Rufus for this purpose for a few reasons:

• It is a self-contained, straightforward C program with no external dependencies
• It relies on both its .rc and .manifest file for a hefty chunk of its functionality

The first (and really only) step is to write a build.zig file using the existing MinGW/Visual Studio build files as a reference, which I've done in a fork here.

However, before we jump into compiling it, let's first try compiling without using the .rc and .manifest files by commenting out a few lines of the build.zig:

    const exe = b.addExecutable(.{
        .name = "rufus",
        .target = target,
        .optimize = optimize,
        .link_libc = true,
        // .win32_manifest = .{ .path = "src/rufus.manifest" },
    });
    // exe.addWin32ResourceFile(.{
    //     .file = .{ .path = "src/rufus.rc" },
    //     .flags = &.{ "/D_UNICODE", "/DUNICODE" },
    // });

Then, to compile it (assuming we're on Windows; we'll handle compiling on non-Windows hosts later):

zig build

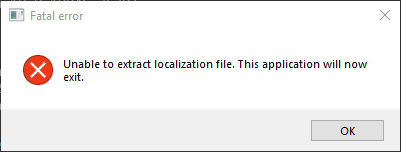

But when we try to run it:

It turns out that Rufus embeds all of its localization strings as a resource via the rufus.rc file here:

IDR_LC_RUFUS_LOC        RCDATA                  "../res/loc/embedded.loc"

Instead of restoring the entire .rc file at once, though, let's start building the .rc file back up piece-by-piece as needed to get a sense of everything the .rc file is being used for. To fix this particular error, we can start with this in rufus.rc:

// this include is needed to #define IDR_LC_RUFUS_LOC
#include "resource.h"

IDR_LC_RUFUS_LOC        RCDATA                  "../res/loc/embedded.loc"

With this .rc file and the exe.addWin32ResourceFile call uncommented in the build.zig file, we can build again, but when we try to run now we hit:

We'll deal with this properly later, but for now we can bypass this issue by right clicking on rufus.exe and choosing Run as administrator. When we do that, we then hit:

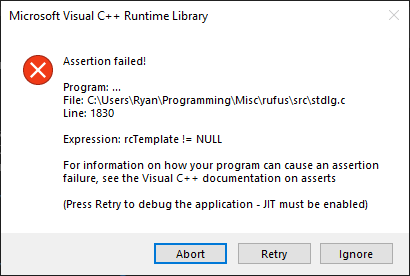

This assertion failure is from Rufus failing to load a dialog template, since Rufus defines all of its dialogs in the .rc file and then loads them at runtime. Here's an example from the .rc file (this is the definition for the main window of Rufus):

IDD_DIALOG DIALOGEX 12, 12, 232, 326
STYLE DS_SETFONT | DS_MODALFRAME | DS_CENTER | WS_MINIMIZEBOX | WS_POPUP | WS_CAPTION | WS_SYSMENU
EXSTYLE WS_EX_ACCEPTFILES
CAPTION "Rufus 4.3.2089"
FONT 9, "Segoe UI Symbol", 400, 0, 0x0
BEGIN
    LTEXT           "Drive Properties",IDS_DRIVE_PROPERTIES_TXT,8,6,53,12,NOT WS_GROUP
    LTEXT           "Device",IDS_DEVICE_TXT,8,21,216,8
    COMBOBOX        IDC_DEVICE,8,30,196,10,CBS_DROPDOWNLIST | WS_VSCROLL | WS_TABSTOP
    PUSHBUTTON      "...",IDC_SAVE,210,30,14,12,BS_FLAT | NOT WS_VISIBLE
    // ... (truncated) ...
END

So let's add back in all the DIALOGEX resource definitions and some necessary preprocessor directives to the .rc file and rebuild:

// Necessary for constants like DS_MODALFRAME, WS_VISIBLE, etc
#include "windows.h"
#ifndef IDC_STATIC
#define IDC_STATIC -1
#endif

// <all the DIALOGEX resource definitions>

Now when we run it:

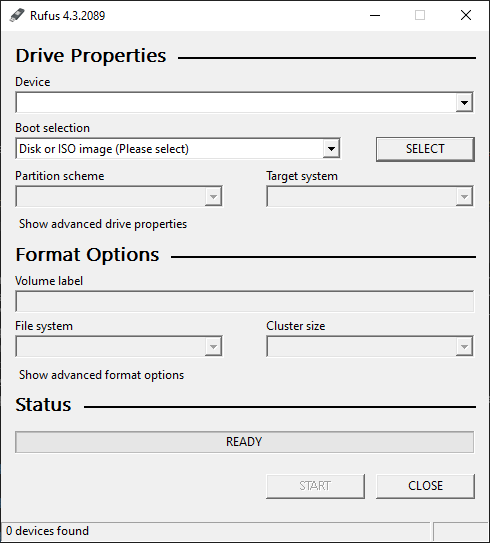

But things still aren't quite right--at the very least, it's missing the application icon in the title bar. Here's the relevant part of the .rc file:

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_ICON                ICON                    "../res/rufus.ico"

Adding that back into the .rc file, it starts looking a bit more like it should:

The rest of the .rc file doesn't affect things in an immediately apparent way, so let's speed through it:

• A VERSIONINFO resource that provides information that then shows up in the Properties window for the executable
• Some RCDATA resources for .png button icons
• Some RCDATA resources for different .SYS, .img, etc. files that Rufus needs for writing bootable media
• An RCDATA resource that is actually an .exe file that Rufus loads and executes at runtime to get better console behavior (see this subdirectory for the details)

So now we can restore the full rufus.rc file and move on to the rufus.manifest file.

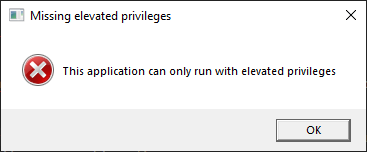

First, let's get back to this problem that we bypassed earlier:

This is something that the .manifest file handles for us. In particular:

  <trustInfo xmlns="urn:schemas-microsoft-com:asm.v3">
    <security>
      <requestedPrivileges>
        <requestedExecutionLevel
          level="requireAdministrator"
          uiAccess="false"/>
      </requestedPrivileges>
    </security>
  </trustInfo>

This will make Windows aware that the program must be run as administrator, and it'll get this little icon overlayed on it in the file explorer:

Now when we run it, it'll always try to run with administrator privileges.

Next, I mentioned previously that things still didn't look quite right. That's because the .manifest file is also used to set the "version" of the common controls that should be used (e.g. the style of things like buttons, dropdowns, etc). Rufus uses version 6.0.0.0 of the common controls:

  <dependency>
    <dependentAssembly>
      <assemblyIdentity
        type="win32"
        name="Microsoft.Windows.Common-Controls"
        version="6.0.0.0"
        processorArchitecture="*"
        publicKeyToken="6595b64144ccf1df"
        language="*"
      />
    </dependentAssembly>
  </dependency>

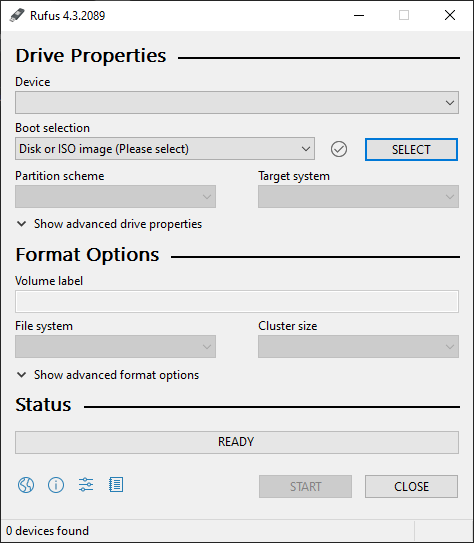

When this is included in the .manifest, everything starts looking as it should (and the .png icons for buttons that were in the .rc file actually show up now):

There's a few more things that Rufus uses the .manifest file for that I won't go into detail on:

• Setting the "active code page" to UTF-8
• Setting "DPI Aware" to true
• Removing MAX_PATH restrictions
• A mild complaint about Microsoft

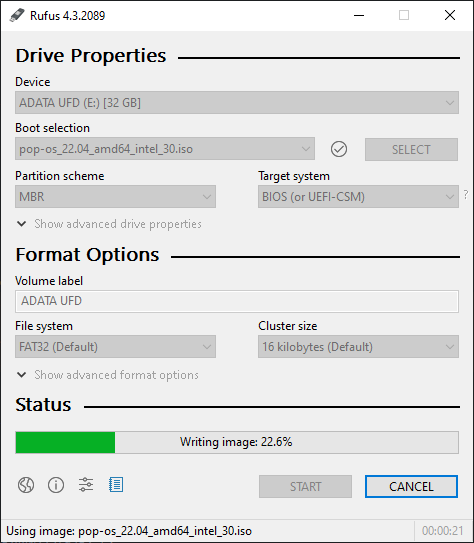

Finally, we can restore the full .manifest file and compile the complete program.

zig build

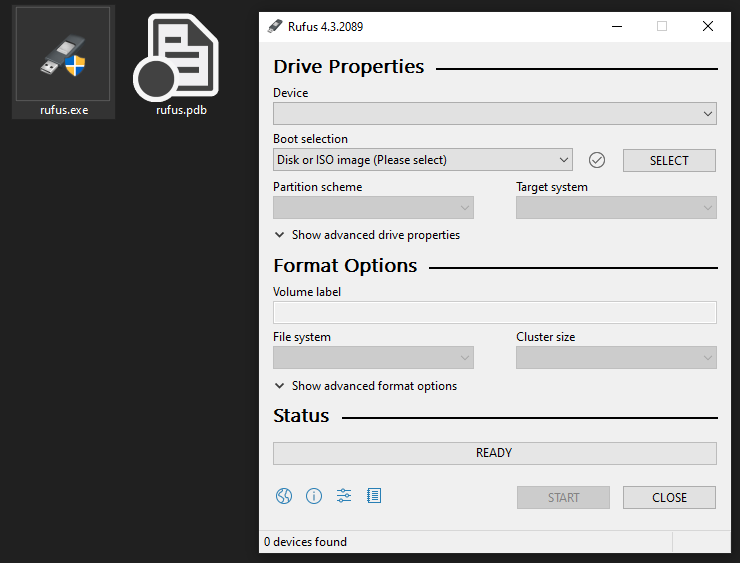

Cross-compiling🔗

This is all pretty cool, but since the default Windows target ABI is gnu (meaning MinGW) and we've gotten that to work when the host is Windows, we can now cross-compile Rufus from any host system that Zig supports. This means that with only a Zig installation (and nothing else; Zig itself has no external dependencies), we get cross-compilation for free (just need to specify the target):

A summary🔗

To recap, here's the list of the consequential things that Rufus relies on its .rc/.manifest files for:

• The layout and style of every dialog in the program (e.g. every button, label, dropdown, etc)
• Localized strings for 30+ different languages
• Icons both for the executable itself and for buttons in its GUI
• Ensuring that the program is run as administrator

and Zig is now capable of compiling (and cross-compiling) programs with these requirements.

Use case: a Zig project🔗

A while back I wrote a Windows shell extension in Zig to mark files as 'watched' in the file explorer. It compiles into a .dll with exactly 1 embedded resource: an icon that gets overlayed on the files that have been marked as 'watched.' The .rc file is incredibly simple:

1 ICON "watched.ico"

Before, I had to compile the .rc file into a .res file using a separate resource compiler (rc.exe, windres, llvm-rc, or resinator), commit the .res file into the repository, and link it into the .dll like this:

watched.addObjectFile(.{ .path = "res/resource.res" });

With Zig's new resource compiling capabilities, I can delete the .res file from the repository and instead go with:

watched.addWin32ResourceFile(.{ .file = .{ .path = "res/resource.rc" } });

(here's the commit where this change was made)

Some benefits of this:

• No longer have a binary .res file committed to the repository
• No dependency on an external resource compiler when making changes to the resource file
• .rc compilation fully integrates with the Zig cache system, meaning that if the .rc file or any of its dependencies changes (e.g #included files or files that are referenced by resource definitions), then the .res will be recompiled (and otherwise it'll use the cached .res)

The details: How do you use resource files in Zig?🔗

First, it must be noted that UTF-16 encoded .rc files are not supported, since the clang preprocessor does not support UTF-16 encoded files. Unfortunately, UTF-16 encoded .rc files are fairly common, as Visual Studio generates them. Support for UTF-16 files in resinator would likely involve a custom preprocessor, so it's still quite a way off.

With that out of the way, there are two interfaces to resinator in the Zig compiler:

Via zig build-exe, build.zig, etc🔗

In the simplest form, you can just give the path to the .rc file via the command line like any other source file:

zig build-exe main.zig my_resource_file.rc

the equivalent in build.zig would be:

exe.addWin32ResourceFile(.{ .file = .{ .path = "my_resource_file.rc" } });

If you need to pass rc.exe-like flags, -rcflags <flags> -- can be used before the .rc file like so:

zig build-exe main.zig -rcflags /c65001 -- my_resource_file.rc

the equivalent in build.zig would be:

exe.addWin32ResourceFile(.{
    .file = .{ .path = "my_resource_file.rc" },
    // Anything that rc.exe accepts will work here
    // https://learn.microsoft.com/en-us/windows/win32/menurc/using-rc-the-rc-command-line-
    // This sets the default code page to UTF-8
    .flags = &.{"/c65001"},
});

By default, zig will try to use the most appropriate system headers available (independent of the target ABI). On Windows, it will always try to use MSVC/Windows SDK include paths if they exist, and fall back to the MinGW headers bundled with Zig if not. On non-Windows, it will always use the MinGW header include paths. The intention with this is to make most .rc files work by default whenever possible, since the MSVC includes have some .rc-related include files that MinGW does not.

If the default header include behavior is unwanted, the -rcincludes option can be used:

zig build-exe main.zig my_resource_file.rc -rcincludes=none

the equivalent in build.zig would be:

exe.rc_includes = .none;

The possible values are any (this is the default), msvc (always use MSVC, no fall back), gnu (always use MinGW), or none (no system include paths provided automatically).

.manifest files🔗

Similar to .rc files, .manifest files can be passed via the command line like so:

zig build-exe main.zig main.manifest

(on the command line, specifying a .manifest file when the target object format is not COFF is an error)

or in build.zig:

const exe = b.addExecutable(.{
    .name = "manifest-test",
    .root_source_file = .{ .path = "main.zig" },
    .target = target,
    .optimize = optimize,
    .win32_manifest = .{ .path = "main.manifest" },
});

(in build.zig, the manifest file is ignored if the target object format is not COFF)

Via zig rc🔗

Similar to how zig cc is a drop-in replacement for a C/C++ compiler, zig rc is a (cross-platform) drop-in replacement for rc.exe. It is functionally identical to standalone resinator, but without the dependency on an external preprocessor.

Here's the usage/help text (note that - and -- are also accepted option prefixes in addition to /):

$ zig rc /?
Usage: zig rc [options] [--] <INPUT> [<OUTPUT>]

The sequence -- can be used to signify when to stop parsing options.
This is necessary when the input path begins with a forward slash.

Supported Win32 RC Options:
  /?, /h                  Print this help and exit.
  /v                      Verbose (print progress messages).
  /d <name>[=<value>]     Define a symbol (during preprocessing).
  /u <name>               Undefine a symbol (during preprocessing).
  /fo <value>             Specify output file path.
  /l <value>              Set default language using hexadecimal id (ex: 409).
  /ln <value>             Set default language using language name (ex: en-us).
  /i <value>              Add an include path.
  /x                      Ignore INCLUDE environment variable.
  /c <value>              Set default code page (ex: 65001).
  /w                      Warn on invalid code page in .rc (instead of error).
  /y                      Suppress warnings for duplicate control IDs.
  /n                      Null-terminate all strings in string tables.
  /sl <value>             Specify string literal length limit in percentage (1-100)
                          where 100 corresponds to a limit of 8192. If the /sl
                          option is not specified, the default limit is 4097.
  /p                      Only run the preprocessor and output a .rcpp file.

No-op Win32 RC Options:
  /nologo, /a, /r         Options that are recognized but do nothing.

Unsupported Win32 RC Options:
  /fm, /q, /g, /gn, /g1, /g2     Unsupported MUI-related options.
  /?c, /hc, /t, /tp:<prefix>,    Unsupported LCX/LCE-related options.
     /tn, /tm, /tc, /tw, /te,
                    /ti, /ta
  /z                             Unsupported font-substitution-related option.
  /s                             Unsupported HWB-related option.

Custom Options (resinator-specific):
  /:no-preprocess           Do not run the preprocessor.
  /:debug                   Output the preprocessed .rc file and the parsed AST.
  /:auto-includes <value>   Set the automatic include path detection behavior.
    any                     (default) Use MSVC if available, fall back to MinGW
    msvc                    Use MSVC include paths (must be present on the system)
    gnu                     Use MinGW include paths (requires Zig as the preprocessor)
    none                    Do not use any autodetected include paths

Note: For compatibility reasons, all custom options start with :

To give you an idea of how compatible zig rc is with rc.exe, I wrote a set of scripts that tests resource compilers using the .rc files in Microsoft's Windows-classic-samples repository. For each .rc file, it compiles it once with rc.exe (the 'canonical' implementation), and once with each resource compiler under test. Any differences in the .res output are considered a 'discrepancy' and we get a summary of all the found discrepancies at the end.

Here are the results:

Processed 460 .rc files

---------------------------
  zig rc
---------------------------

460 .rc files processed without discrepancies
identical .res outputs:     460

---------------------------

That is, zig rc compiles every .rc file into a byte-for-byte identical .res file when compared to rc.exe (see the README for windres and llvm-rc results).

Diving deeper: How does it work under-the-hood?🔗

For .rc files, there is a four step process:

1. The CLI flags are parsed by resinator. If there are any invalid flags it'll error and fail the compilation
2. The .rc file is run through the clang preprocessor and turned into an intermediate .rcpp file
3. The .rcpp file is compiled by resinator and turned into a .res file
4. The .res file is added to the list of link objects and linked into the final binary by the linker

For .manifest files, the process is similar but there's a generated .rc file involved:

1. A .rc file is generated with the contents 1 24 "path-to-manifest.manifest" (1 is CREATEPROCESS_MANIFEST_RESOURCE_ID which is the default ID for embedded manifests, and 24 is RT_MANIFEST--there's no recognized keyword for the RT_MANIFEST resource type so the integer value must be used instead)
2. That generated .rc file is compiled into a .res file (no need for flags/preprocessing)
3. The .res file is linked into the final binary

Wrapping up🔗

I believe that Zig now has the most rc.exe-compatible cross-platform Windows resource compiler implementation out there. With Zig's already powerful zig cc and cross-compilation abilities, this should unlock even more use-cases for Zig--both as a language and as a toolchain.
