Windows drive letters are not limited to A-Z

- Programming - Windows

On its own, the title of this post is just a true piece of trivia, verifiable with the built-in subst tool (among other methods).

Here's an example creating the drive +:\ as an alias for a directory at C:\foo:

subst +: C:\foo

The +:\ drive then works as normal (at least in cmd.exe, this will be discussed more later):

> cd /D +:\

+:\> tree .
Folder PATH listing
Volume serial number is 00000001 12AB:23BC
+:\
└───bar

However, understanding why it's true elucidates a lot about how Windows works under the hood, and turns up a few curious behaviors.

What is a drive letter, anyway?🔗

The paths that most people are familiar with are Win32 namespace paths, e.g. something like C:\foo which is a drive-absolute Win32 path. However, the high-level APIs that take Win32 paths like CreateFileW ultimately will convert a path like C:\foo into a NT namespace path before calling into a lower level API within ntdll.dll like NtCreateFile.

This can be confirmed with NtTrace, where a call to CreateFileW with C:\foo ultimately leads to a call of NtCreateFile with \??\C:\foo:

NtCreateFile( FileHandle=0x40c07ff640 [0xb8], DesiredAccess=SYNCHRONIZE|GENERIC_READ|0x80, ObjectAttributes="\??\C:\foo", IoStatusBlock=0x40c07ff648 [0/1], AllocationSize=null, FileAttributes=0, ShareAccess=7, CreateDisposition=1, CreateOptions=0x4000, EaBuffer=null, EaLength=0 ) => 0
NtClose( Handle=0xb8 ) => 0
Test code, reproduction info

createfilew.zig:

const std = @import("std");
const windows = std.os.windows;
const L = std.unicode.wtf8ToWtf16LeStringLiteral;

pub extern "kernel32" fn CreateFileW(
    lpFileName: windows.LPCWSTR,
    dwDesiredAccess: windows.DWORD,
    dwShareMode: windows.DWORD,
    lpSecurityAttributes: ?*windows.SECURITY_ATTRIBUTES,
    dwCreationDisposition: windows.DWORD,
    dwFlagsAndAttributes: windows.DWORD,
    hTemplateFile: ?windows.HANDLE,
) callconv(.winapi) windows.HANDLE;

pub fn main() !void {
    const path = L("C:\\foo");
    const dir_handle = CreateFileW(
        path,
        windows.GENERIC_READ,
        windows.FILE_SHARE_DELETE | windows.FILE_SHARE_READ | windows.FILE_SHARE_WRITE,
        null,
        windows.OPEN_EXISTING,
        windows.FILE_FLAG_BACKUP_SEMANTICS | windows.FILE_FLAG_OVERLAPPED,
        null,
    );
    if (dir_handle == windows.INVALID_HANDLE_VALUE) return error.FailedToOpenDir;
    defer windows.CloseHandle(dir_handle);
}

Built with:

zig build-exe createfilew.zig

To run with NtTrace:

nttrace createfilew.exe > createfilew.log

That \??\C:\foo is a NT namespace path, which is what NtCreateFile expects. To understand this path, though, we need to talk about the Object Manager, which is responsible for handling NT paths.

The Object Manager🔗

The Object Manager is responsible for keeping track of named objects, which we can explore using the WinObj tool. The \?? part of the \??\C:\foo path is actually a special virtual folder within the Object Manager that combines the \GLOBAL?? folder and a per-user DosDevices folder together.

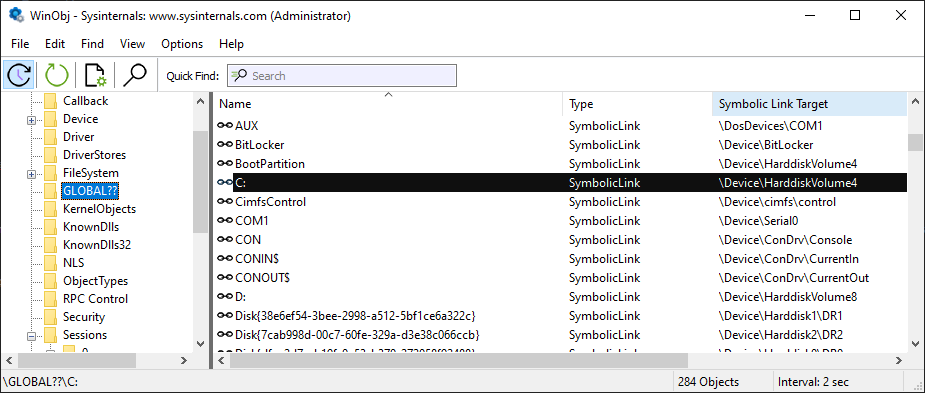

For me, the object C: is within \GLOBAL??, and is actually a symbolic link to \Device\HarddiskVolume4:

So, \??\C:\foo ultimately resolves to \Device\HarddiskVolume4\foo, and then it's up to the actual device to deal with the foo part of the path.

The important thing here, though, is that \??\C:\foo is just one way of referring to the device path \Device\HarddiskVolume4\foo. For example, volumes will also get a named object created using their GUID with the format Volume{18123456-abcd-efab-cdef-1234abcdabcd} that is also a symlink to something like \Device\HarddiskVolume4, so a path like \??\Volume{18123456-abcd-efab-cdef-1234abcdabcd}\foo is effectively equivalent to \??\C:\foo.

All this is to say that there's nothing innately special about the named object C:; the Object Manager treats it just like any other symbolic link and resolves it accordingly.

So, what is a drive letter, really?🔗

How I see it, drive letters are essentially just a convention borne out of the conversion of a Win32 path into a NT path. In particular, that would be down to the implementation of RtlDosPathNameToNtPathName_U.

In other words, since RtlDosPathNameToNtPathName_U converts C:\foo to \??\C:\foo, then an object named C: will behave like a drive letter. To give an example of what I mean by that: in an alternate universe, RtlDosPathNameToNtPathName_U could convert the path FOO:\bar to \??\FOO:\bar and then FOO: could behave like a drive letter.

So, getting back to the title, how does RtlDosPathNameToNtPathName_U treat something like +:\foo? Well, exactly the same as C:\foo:

> paths.exe C:\foo
path type: .DriveAbsolute
  nt path: \??\C:\foo

> paths.exe +:\foo
path type: .DriveAbsolute
  nt path: \??\+:\foo
Test program code

paths.zig:

const std = @import("std");
const windows = std.os.windows;

pub fn main() !void {
    var arena_state = std.heap.ArenaAllocator.init(std.heap.page_allocator);
    defer arena_state.deinit();
    const arena = arena_state.allocator();

    const args = try std.process.argsAlloc(arena);
    if (args.len <= 1) return error.ExpectedArg;

    const path = try std.unicode.wtf8ToWtf16LeAllocZ(arena, args[1]);

    const path_type = RtlDetermineDosPathNameType_U(path);
    std.debug.print("path type: {}\n", .{path_type});
    const nt_path = try RtlDosPathNameToNtPathName_U(path);
    std.debug.print("  nt path: {f}\n", .{std.unicode.fmtUtf16Le(nt_path.span())});
}

const RTL_PATH_TYPE = enum(c_int) {
    Unknown,
    UncAbsolute,
    DriveAbsolute,
    DriveRelative,
    Rooted,
    Relative,
    LocalDevice,
    RootLocalDevice,
};

pub extern "ntdll" fn RtlDetermineDosPathNameType_U(
    Path: [*:0]const u16,
) callconv(.winapi) RTL_PATH_TYPE;

fn RtlDosPathNameToNtPathName_U(path: [:0]const u16) !windows.PathSpace {
    var out: windows.UNICODE_STRING = undefined;
    const rc = windows.ntdll.RtlDosPathNameToNtPathName_U(path, &out, null, null);
    if (rc != windows.TRUE) return error.BadPathName;
    defer windows.ntdll.RtlFreeUnicodeString(&out);

    var path_space: windows.PathSpace = undefined;
    const out_path = out.Buffer.?[0 .. out.Length / 2];
    @memcpy(path_space.data[0..out_path.len], out_path);
    path_space.len = out.Length / 2;
    path_space.data[path_space.len] = 0;

    return path_space;
}

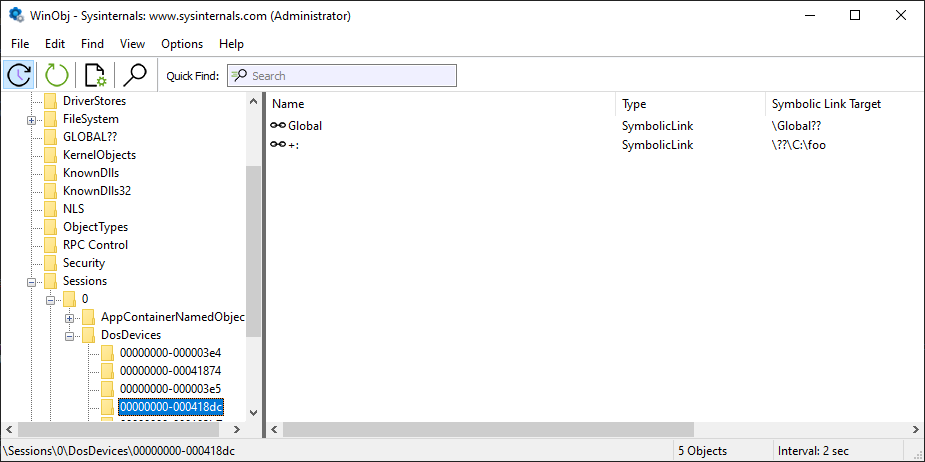

Therefore, if an object with the name +: is within the virtual folder \??, we can expect the Win32 path +:\ to behave like any other drive-absolute path, which is exactly what we see.

Some exploration of the implications🔗

This section only focuses on a few things that were relevant to what I was working on. I encourage others to investigate the implications of this further if they feel so inclined.

explorer.exe doesn't play ball🔗

Drives with a drive-letter other than A-Z do not appear in File Explorer, and cannot be navigated to in File Explorer.

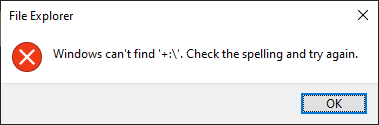

Error when attempting to navigate to +:\ in File Explorer

For the "do not appear" part, my guess as to what's happening is that explorer.exe is walking \?? and looking specifically for objects named A: through Z:. For the "cannot be navigated to" part, that's a bit more mysterious, but my guess is that explorer.exe has a lot of special logic around handling paths typed into the location bar, and part of that restricts drive letters to A-Z (i.e. it's short-circuiting before it ever tries to actually open the path).

PowerShell doesn't, either🔗

PowerShell seems to reject non-A-Z drives as well:

PS C:\> cd +:\
cd : Cannot find drive. A drive with the name '+' does not exist.
At line:1 char:1
+ cd +:\
+ ~~~~~~
    + CategoryInfo          : ObjectNotFound: (+:String) [Set-Location], DriveNotFoundException
    + FullyQualifiedErrorId : DriveNotFound,Microsoft.PowerShell.Commands.SetLocationCommand

Non-ASCII drive letters🔗

Drive letters don't have to be within the ASCII range at all; they can also be non-ASCII characters.

> subst €: C:\foo

> cd /D €:\

€:\> tree .
Folder PATH listing
Volume serial number is 000000DE 12AB:23BC
€:\
└───bar

Non-ASCII drive letters are even case-insensitive like A-Z are:

> subst Λ: C:\foo

> cd /D λ:\

λ:\> tree .
Folder PATH listing
Volume serial number is 000000DE 12AB:23BC
λ:\
└───bar

However, drive-letters cannot be arbitrary Unicode graphemes or even arbitrary code points; they are restricted to a single WTF-16 code unit (a u16, so <= U+FFFF). The tool that we've been using so far (subst.exe) errors with Invalid parameter if you try to use a drive letter with a code point larger than U+FFFF, but you can get around that by going through the MountPointManager directly:

Code used to create the 𤭢: symlink
const std = @import("std");
const windows = std.os.windows;
const L = std.unicode.wtf8ToWtf16LeStringLiteral;

const MOUNTMGR_CREATE_POINT_INPUT = extern struct {
    SymbolicLinkNameOffset: windows.USHORT,
    SymbolicLinkNameLength: windows.USHORT,
    DeviceNameOffset: windows.USHORT,
    DeviceNameLength: windows.USHORT,
};

pub fn main() !void {
    const mgmt_handle = try windows.OpenFile(L("\\??\\MountPointManager"), .{
        .access_mask = windows.SYNCHRONIZE | windows.GENERIC_READ | windows.GENERIC_WRITE,
        .share_access = windows.FILE_SHARE_READ | windows.FILE_SHARE_WRITE | windows.FILE_SHARE_DELETE,
        .creation = windows.FILE_OPEN,
    });
    defer windows.CloseHandle(mgmt_handle);

    const volume_name = L("\\Device\\HarddiskVolume4");
    const mount_point = L("\\DosDevices\\𤭢:");

    const buf_size = @sizeOf(MOUNTMGR_CREATE_POINT_INPUT) + windows.MAX_PATH * 2 + windows.MAX_PATH * 2;
    var input_buf: [buf_size]u8 align(@alignOf(MOUNTMGR_CREATE_POINT_INPUT)) = [_]u8{0} ** buf_size;

    var input_struct: *MOUNTMGR_CREATE_POINT_INPUT = @ptrCast(&input_buf[0]);
    input_struct.SymbolicLinkNameOffset = @sizeOf(MOUNTMGR_CREATE_POINT_INPUT);
    input_struct.SymbolicLinkNameLength = mount_point.len * 2;
    input_struct.DeviceNameOffset = input_struct.SymbolicLinkNameOffset + input_struct.SymbolicLinkNameLength;
    input_struct.DeviceNameLength = volume_name.len * 2;

    @memcpy(input_buf[input_struct.SymbolicLinkNameOffset..][0..input_struct.SymbolicLinkNameLength], @as([*]const u8, @ptrCast(mount_point)));
    @memcpy(input_buf[input_struct.DeviceNameOffset..][0..input_struct.DeviceNameLength], @as([*]const u8, @ptrCast(volume_name)));

    const IOCTL_MOUNTMGR_CREATE_POINT = windows.CTL_CODE(windows.MOUNTMGRCONTROLTYPE, 0, .METHOD_BUFFERED, windows.FILE_READ_ACCESS | windows.FILE_WRITE_ACCESS);
    try windows.DeviceIoControl(mgmt_handle, IOCTL_MOUNTMGR_CREATE_POINT, &input_buf, null);
}

(the compiled executable must be run as administrator)

However, having the symlink in place doesn't solve anything on its own:

> cd /D 𤭢:\
The filename, directory name, or volume label syntax is incorrect.

This is because there's no way to get the drive-absolute Win32 path 𤭢:\ to end up as the relevant NT path. As mentioned earlier, the behavior of RtlDosPathNameToNtPathName_U is what matters, and we can verify that it will not convert a drive-absolute path with a drive letter bigger than U+FFFF to the relevant NT path:

C:\foo> paths.exe 𤭢:\foo
path type: .Relative
  nt path: \??\C:\foo\𤭢:\foo

Path classification mismatch🔗

It's very common for path-related functions to be written without the use of system-specific APIs, which means that there's high potential for a mismatch between how RtlDosPathNameToNtPathName_U treats a file path and how something like a particular implementation of path.isAbsolute treats a file path.

As a random example, Rust only considers paths with A-Z drive letters as absolute:

use std::path::Path;

fn main() {
    println!("C:\\ {}", Path::new("C:\\foo").is_absolute());
    println!("+:\\ {}", Path::new("+:\\foo").is_absolute());
    println!("€:\\ {}", Path::new("€:\\foo").is_absolute());
}

> rustc test.rs

> test.exe
C:\ true
+:\ false
€:\ false

Whether or not this represents a problem worth fixing is left as an exercise for the reader (I genuinely don't know if it is a problem), but there's a second wrinkle (hinted at previously) involving text encoding that can make something like an isAbsolute implementation return different results for the same path. This wrinkle is the reason I looked into this whole thing in the first place, as when I was doing some work on Zig's path-related functions recently I realized that looking at path[0], path[1], and path[2] for a pattern like C:\ will look at different parts of the path depending on the encoding. That is, for something like €:\ (which is made up of the code points <U+20AC><U+003A><U+005C>):

So, to write an implementation that treats paths the same regardless of encoding, some decision has to be made:

That's NOT the EURO drive🔗

Something bizarre that I found with this whole thing is that the kernel32.dll API SetVolumeMountPointW has it's own unique quirk when dealing with non-ASCII drive letters. Specifically, this code (attempting to create the drive €:\) will succeed:

const std = @import("std");
const windows = std.os.windows;
const L = std.unicode.wtf8ToWtf16LeStringLiteral;

extern "kernel32" fn SetVolumeMountPointW(
    VolumeMountPoint: windows.LPCWSTR,
    VolumeName: windows.LPCWSTR,
) callconv(.winapi) windows.BOOL;

pub fn main() !void {
    const volume_name = L("\\\\?\\Volume{18123456-abcd-efab-cdef-1234abcdabcd}\\");
    const mount_point = L("€:\\");
    if (SetVolumeMountPointW(mount_point, volume_name) == 0) {
        const err = windows.GetLastError();
        std.debug.print("{any}\n", .{err});
        return error.Failed;
    }
}

However, when we look at the Object Manager, the €: symlink won't exist... but ¬: will:

My time dealing extensively with Windows quirks made me recognize what might be happening here: 0x20AC is likely being truncated to 0xAC by SetVolumeMountPointW, and U+00AC happens to be ¬. If that is indeed what's going on, it seems pretty strange to truncate the drive letter instead of reject the path, but it also makes sense that non-ASCII drive letters are an edge case that no one has really thought about at all.

Wrapping up🔗

I have no idea if anything I wrote about here is novel, although my cursory searches didn't turn up much. The only mention of non-A-Z drive letters I'm currently aware of is from the article The Definitive Guide on Win32 to NT Path Conversion which says:

it's natural to assume that drive "letters" can only be A through Z. It turns out the RtlGetFullPathName_U API does not enforce this requirement, although the Explorer shell and command prompt almost certainly do. Therefore as long as the second character of a path is a colon, the conversion will treat it as a Drive Absolute or Drive Relative path. Of course if the DosDevices object directory doesn't have an appropriate symbolic link it's not going to do you much good.

Well, it turns out that the command prompt also doesn't enforce the requirement, and I'd guess that there's at least some more weirdness around this quirk that's waiting to be discovered.
